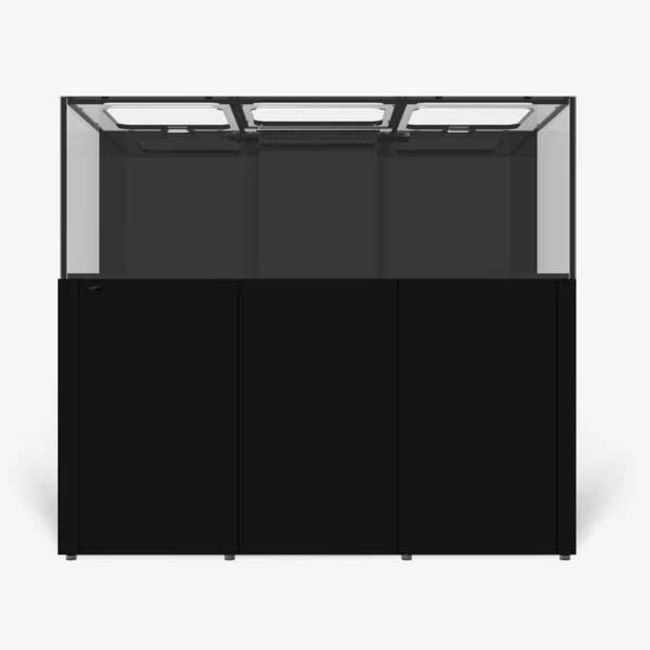

WATERBOX AQUARIUMS REEF LX 290.6
SKU
WD-RLX290.6
Starting at:
$7,499.00
Factory Direct - Usually Ships Out Within 3-4 Days
Only %1 left
• Dimensions (LxWxH): 1836 x 750 x 650mm (72.3" × 29.5" × 25.6")
• Height with Cabinet: 1650mm/65"
• Display Volume: 808 L/213.4 gals
• Total Volume: 1095 L/289.3 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
More Gallons, More Potential
The REEF LX total system volume begins at 240.5 gallons (910L) and goes up to 344.2 gallons (1303L).
Eurobrace with Aquarium Mesh Lid
Our CNC Precision Eurobrace reinforces the 19mm Ultra Clear Glass Viewing Panels
30" Depth
Our REEF LX delivers a staggering 30 inches (750mm) of depth for the ultimate in aquascaping possibilities.
Full Glass Overflow
Overflow boxes are constructed entirely of glass with water-etched weir teeth.
Glass Overflow Cover
Each Waterbox has an overflow cover with unique branding.
Ultra Low Iron Glass
Our aquariums are all manufactured using Low Iron Ultra Clear glass that is diamond beveled providing 91% transmittance.
High Strength Silicone
Manufactured using german made Wacker silicone will provide your aquarium with the longevity it needs.
Standard 90 Degree Joints
Manufactured using the standard aquarium manufacturing joints for maximum durability and strength.
Ready to Assemble Plumbing
Our engineers have designed the REEF LX with a ready to assemble plumbing kit that provides easy installation without any gluing required.
Precision Gate Valve
Maximizes your control of the flow to ensure whisper-quiet operation.
Safety Drain
Keeps your aquarium flowing in the event of a main drain clog.
Check Valve
Preinstalled to prevent backflow and sump overflows.
Dual Manifold System
Connects seamlessly with your desired filtration and reactors.
Filtration for the Pros
Our REEF™ systems shine above the rest with our thoughtfully designed, sized and placed sump system which provides ample space for all filtration equipment.
Refugium
Create the ultimate biotope with our optional refugium section in all REEF LX models. *Refugium plate is removable.
External ATO
The included ATO reservoir is designed for use with an electronic auto top-off , keeping your system stable and topped up.
Filter Socks
Filter socks are critical in removing unwanted organics and detritus, while clarifying and polishing the water.
Built For Strength & Stability
The Waterbox MARINESHIELD® series is our most advanced line of cabinetry yet. It comes fully assembled from us to your doorstep.
Plywood Cabinetry
This cabinetry utilizes fully waterproof wood composite materials and comes fully assembled. Available in White or Black.
Powder Coated Aluminum Framing
Designed for maximum rigidity, the Waterbox frame supports 50% more than traditional aquarium cabinetry.
Control Center
Each Waterbox cabinet includes a control center, strategically designed to accommodate all major controllers, drivers and dosers. The control center is flexible and can be installed on either side of the cabinet.
Leveling Feet
Eccentric leveling feet create the most stable foundation for these oversized aquarium systems.
Technical Specifications
| PRODUCT MODEL | REEF LX 240.5 | REEF LX 290.6 | REEF LX 340.7 | |
|---|---|---|---|---|
| Display | Dimensions (Length x Width x Height) |
1510 x 750 x 650mm | 1836 x 750 x 650mm | 2200 x 750 x 650mm |
| 59.4" × 29.5" × 25.6" | 72.3" × 29.5" × 25.6" | 86.6" × 29.5" × 25.6" | ||
| Glass Thickness | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Euro-bracing Thickness | 15mm (3/5″) | 15mm (3/5″) | 15mm (3/5″) | |
| Aquarium Volume | 661 L/174.7 gals | 808 L/213.4 gals | 971 L/256.6 gals | |
| Aquarium Weight | 294.0 kg / 548.2 lb | 341.0 kg / 751.8 lb | 397.0 kg / 875.2 lb | |
| Glass Material | Ultra-clear Low Iron glass (front, sides and euro-bracing) | |||
| Transmittance | 91% | |||
| Sump | Dimensions (Length x Width x Height) |
920 x 580 x 400mm | 1000 x 580 x 400mm | 1200 x 580 x 400mm |
| 36.2" × 22.8" × 15.7" | 39.4" × 22.8" × 15.7" | 47.2" × 22.8" × 15.7" | ||
| Sump Volume | 200 L/52.8 gals | 218 L/57.5 gals | 262 L/69.2 gals | |
| Sump Weight | 53.0 kg / 116.8 lb | 56.0 kg / 123.5 lb | 63.0 kg / 138.9 lb | |
| Glass Thickness | 8mm (5/16") | 8mm (5/16") | 8mm (5/16") | |
| Refugium Chamber (Max Dimensions) |
250 x 488mm | 300 x 488mm | 355 x 488mm | |
| 9.8" × 19.2" | 11.8" × 19.2" | 14" × 19.2" | ||
| Refugium Chamber (Min Dimensions) |
145 x 488mm | 195 x 488mm | 250 x 488mm | |
| 5.7" × 19.2" | 7.7" × 19.2" | 9.8" × 19.2" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
475 x 488mm | 555 x 488mm | 755 x 488mm | |
| 18.7" × 19.2" | 21.9" × 19.2" | 29.7" × 19.2" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
325 x 488mm | 355 x 488mm | 500 x 488mm | |
| 12.8" × 19.2" | 14" × 19.2" | 19.7" × 19.2" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
219 x 488mm | 249 x 488mm | 394 x 488mm | |
| 8.9" × 19.2" | 9.8" × 19.2" | 15.5" × 19.2" | ||
| Pump Chamber (Int. Dimensions) |
180 x 488mm | 180 x 488mm | 180 x 488mm | |
| 7.1" × 19.2" | 7.1" × 19.2" | 7.1" × 19.2" | ||
| ATO | ATO Dimensions (Length x Width x Height) |
250 x 580 x 370mm | 350 x 580 x 370mm | 350 x 580 x 370mm |
| 9.8" × 22.8" × 14.6" | 13.8" × 22.8" × 14.6" | 13.8" × 22.8" × 14.6" | ||
| ATO Volume | 49 L/13 gals | 70 L/18.5 gals | 70 L/18.5 gals | |
| ATO Weight | 12.0 kg / 26.5 lb | 15.0 kg / 33.1 lb | 15.0 kg / 33.1 lb | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | |
| Plumbing | Main Drain | 2 x DN25 (32mm/1-1/4") | ||
| Emergency Overflow | DN32 (40mm/1-1/2") | |||
| Pump Return | DN25 (32mm/1-1/4") | |||
| Nozzle(s) | 2 x DN20 | |||
| FELT Filter Socks | 2 x 180mm/7" | |||
| Cabinet | Cabinet Model | ALU 6030 | ALU 7230 | ALU 8730 |
| Cabinet Dimensions | 1510 x 750 x 1000mm | 1836 x 750 x 1000mm | 2200 x 750 x 1000mm | |
| 59.4" × 29.5" × 39.4" | 72.3" × 29.5" × 39.4" | 86.6" × 29.5" × 39.4" | ||
| Sump Compartment (Int. Dimensions) |
1249 x 654 x 834mm | 1124 x 654 x 834mm | 1262 x 654 x 834mm | |
| 49.2"×25.7"×32.8" | 44.3" × 25.7" × 32.8" | 49.7" × 25.7" × 32.8" | ||
| ATO Compartment (Int. Dimensions) |
N/A | 385 x 714 x 834mm | 506 x 684 x 834mm | |
| 15.2" × 28.1" × 32.8" | 19.9" × 26.9" × 32.8" | |||
| Electrical Compartment (Int. Dimensions) |
478 x 156 x 797mm | 478 x 156 x 797mm | 478 x 156 x 797mm | |
| 18.8" × 6.1" × 31.4" | 18.8" × 6.1" × 31.4" | 18.8" × 6.1" × 31.4" | ||
| Cabinet Framework | Anodized 6063 Aluminum Alloy (3030 CE) | |||
| Cabinet Panels | 18mm Solid Plywood | |||
| Panel Paint | Water-resistant PU Coated (front & sides) | |||
| Cabinet Color | W-White, B-Black | |||
| Cabinet Weight | 196.0 kg / 432.1 lb | 231 kg / 509.3 lb | 274 kg / 606.3 lb | |
| System | Height with Cabinet | 1650mm/65" | 1650mm/65" | 1650mm/65" |
| Total Volume | 910 L/240.5 gals | 1095 L/289.3 gals | 1303 L/344.2 gals | |
| Manufacturer | Waterbox Aquariums |
|---|
