Tradewind Inline Chillers

Tradewind Inline Chillers

Warranty: 2 Year Mfg. Warranty with optional additional 3 year mail in warranty for a total of 5 years.

Made in the USA

If you need this chiller shipped via a faster shipping option than UPS Ground, please contact us for accurate shipping costs.

UPSable MODELS

1/5 HP, 1/4 HP, 1/3 HP, Super 1/3 HP, 1/2 HP, Super 1/2 HP

Models that require LTL Freight Shipping - Contact us for a shipping quote prior to ordering

3/4 HP. 1 HP, 1 1/2 HP, 2 HP, 3 HP

All Trade Winds Chillers come standard with a Inkbird-308 Controller.

TradeWind 1/5 Horsepower Inline Chiller Specifications:

• Tank Size: up to 120 Gallons
• Flow Rate (min-max): 5-14
• Weight: 40 Lbs
• Dimensions (HxWxL): 11.5x15.5x14.25
• Amps: 3.75
• Volts: 115
• Max Fuse Size: 15 Amps
• BTU Rating: 1500

TradeWind 1/4 Horsepower Inline Chiller Specifications:

• Tank Size: up to 175 Gallons
• Flow Rate (min-max): 7-20 GPM
• Weight: 45 Lbs
• Dimensions (HxWxL): 14.5x15.5x11.5
• Amps: 4.9
• Volts: 115
• Max Fuse Size: 15 Amps
• BTU Rating: 2500

TradeWind 1/3 Horsepower Inline Chiller Specifications:

• Tank Size: up to 300 Gallons
• Flow Rate (min-max): 8-25 GPM
• Weight: 49 Lbs
• Dimensions (HxWxL): 14.5x15.5x11.5
• Amps: 7.2
• Volts: 115
• Max Fuse Size: 15 Amps
• BTU Rating: 3500

TradeWind Super 1/3 Horsepower Inline Chiller Specifications:

• Tank Size: up to 400 Gallons
• Flow Rate (min-max): 10-30 GPM
• Weight: 55 Lbs
• Dimensions (HxWxL): 16.5x17.5x13.5
• Amps: 7.5
• Volts: 115
• Max Fuse Size: 15 Amps
• BTU Rating: 4200

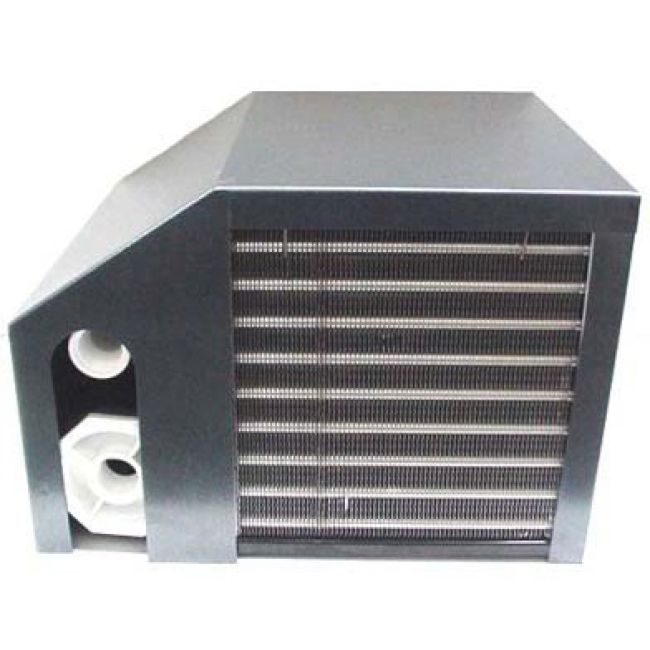

Tradewind Compact 1/2 HP Inline Chiller

TradeWind Chillers proudly introduces the new Compact 1/2 hp series, available in both Inline and Drop-In style models.  These high power units feature the same small footprint as the Super 1/3 hp series, with even more power, to cool tanks up to 450 gallons.  Since the units are more compact and lighter than our Super 1/2 hp units, they can be shipped out to you through common carriers like UPS or FedEx, saving you shipping costs.

Specifications:

• Tank Size: Up to 450 Gallons
• Flow Rate (Min - Max): 10-30 GPM
• Weight: 70 lbs.
• Dimensions: 16.5x17.5x13.5
• Amps: 8.8
• Volts: 115V
• BTU Rating: 4900

TradeWind 1 HP Inline Chiller 115 Volt

This item must ship via freight line. Please call for a shipping quote.

Specifications:

• Horsepower: 3/4
• Tank Size: up to 750 Gallons
• Flow Rate (min-max): 18-45 GPM
• Weight: 90 Lbs.
• Dimensions: 23x21x15
• Amps: 13.3
• Volts: 115
• Max Fuse Size: 20

This chiller is also available as a custom drop in model. Please call us for more information.

TradeWind 1 HP Inline Chiller 115 Volt

This item must ship via freight line. Please call for a shipping quote.

Specifications:

• Horsepower: 3/4
• Tank Size: up to 750 Gallons
• Flow Rate (min-max): 18-45 GPM
• Weight: 90 Lbs.
• Dimensions: 23x21x15
• Amps: 13.3
• Volts: 115
• Max Fuse Size: 20

TradeWind 1 1/2 HP Inline Chiller

This item must ship via freight line. Please call for a shipping quote.

Specifications:

• Horsepower: 1 1/2 HP
• Tank Size: up to 1500 Gallons
• Flow Rate (min-max): 30-60 GPM
• Weight: 235
• Dimensions: 27x27x35
• Amps: 9.5
• Volts: 208-230

This chiller is also available as a custom drop in model. Please call us for more information.

TradeWind 2 HP Inline Chiller

This item must ship via freight line. Please call for a shipping quote.

Specifications:

• Horsepower: 2 HP
• Tank Size: up to 2000 Gallons
• Flow Rate (min-max): 35-70 GPM
• Weight: 260
• Dimensions: 27x27x39
• Amps: 12.5
• Volts: 208-230

This chiller is also available as a custom drop in model. Please call us for more information.

TradeWind 3 HP Inline Chiller

This item must ship via freight line. Please call for a shipping quote.

Specifications:

• Horsepower: 3 HP
• Tank Size: up to 3000 Gallons
• Flow Rate (min-max): 40-75 GPM
• Weight: 275 Dimensions: 33x33x40
• Amps: 14.25 Volts: 208-230
• This chiller is also available as a custom drop in model. Please call us for more information.
